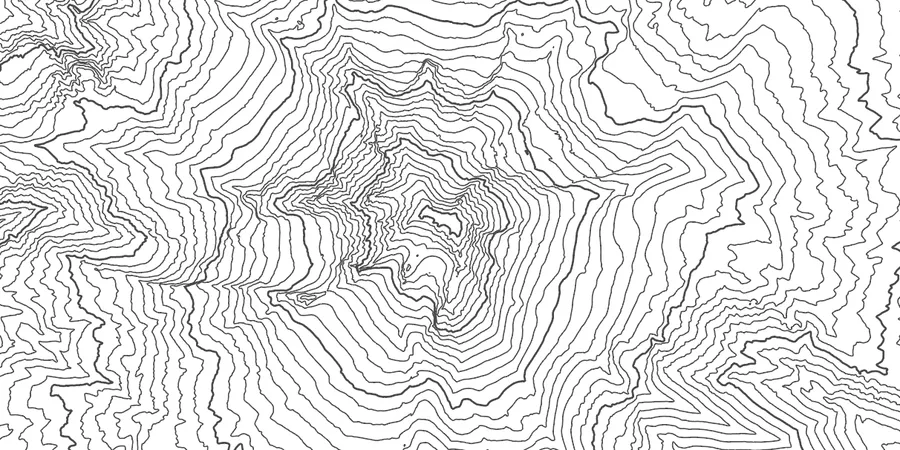

What Is a Topographic Map?
A guide to reading topographic maps: how contour lines work, what they reveal about terrain, and how elevation data becomes art.
Contour Lines: The Language of Terrain
A topographic map represents the three-dimensional shape of the Earth’s surface on a flat page. It does this through contour lines that connect points of equal elevation. If you could walk along a single contour line, you’d never go uphill or downhill. Every step would stay at exactly the same altitude.
The spacing between contour lines tells you how steep the terrain is. Lines packed closely together mean the elevation is changing rapidly: a cliff, a steep ridge, or the face of a mountain. Lines spread wide apart indicate gentle terrain: a valley floor, a plateau, or a gradual slope.
I’ll admit, when I first started showing these maps at art fairs last summer, I was surprised by how many people asked what they were. As a lifelong hiker, I’d never considered that contour maps weren’t universally familiar. So here’s a quick primer.
How to Read a Topographic Map
Reading a topographic map is simpler than it looks. The basics below apply to traditional navigational maps. The maps I make at Flow Line Maps take some artistic liberties (more on that shortly), but understanding the fundamentals makes the art more rewarding to look at.
Contour interval is the elevation difference between adjacent lines. On a navigational map with a 50-meter contour interval, each line represents a 50-meter step in elevation. Smaller intervals show more detail; larger intervals simplify the picture.
Index contours are the thicker lines that appear at regular intervals, typically every fifth line on a standard map. They’re usually labeled with their elevation and serve as reference points for reading the rest of the map.
Closed loop indicate hilltops or depressions. A series of concentric closed contours with increasing elevation marks a summit. The innermost ring is the highest point on the map.
V-shaped contours pointing uphill indicate valleys and drainages. Water flows perpendicular to contour lines, from high elevation to low, so the V always points upstream.
In my maps, the contour interval and index line frequency are chosen for visual impact rather than navigational convention. I pick intervals that best capture a location’s character, and I don’t label elevations. The goal is art that’s rooted in real data, not a map you’d take on a hike.
Where Topographic Data Comes From
Modern topographic maps are built from digital elevation models (DEMs), massive grids of elevation measurements that cover the Earth’s surface. These datasets come from several sources:
Satellite radar missions like SRTM (Shuttle Radar Topography Mission) mapped most of the planet at roughly 30-meter resolution. This is the workhorse dataset for global topographic mapping.
LiDAR (Light Detection and Ranging) uses airborne laser pulses to measure ground elevation with sub-meter precision. LiDAR data is available for much of the United States, though it’s scattered across different state agencies and repositories. Working with it often means pulling files from a patchwork of state websites and combining different formats, from point clouds to GeoTIFFs, to assemble a complete picture of a location.
Photogrammetry derives elevation from overlapping aerial photographs by identifying matching features across multiple images taken from different angles. The offset between those matching points reveals depth, much like human stereo vision. It’s one of the oldest remote sensing techniques, used to create topographic maps since the early 20th century, and modern computational photogrammetry continues to produce high-quality elevation models.
The elevation models used in our topographic map art come primarily from high-resolution LiDAR datasets, often combining multiple sources at different scales and resolutions to capture each location’s terrain with the best available detail.
From Data to Art
A traditional topographic map serves navigation. It needs labels, grid lines, trails, roads, and a legend. A topographic map designed as art strips all of that away.
What remains are the contour lines themselves, the pure shape of the land. Without labels or reference marks, the eye can follow ridgelines, trace cirques carved by glaciers, and see the asymmetry between a mountain’s gentle windward slope and its steep leeward face.
At Flow Line Maps, the process starts with raw elevation data and ends with a pen plotter drawing every contour line on archival paper. Custom algorithms determine the contour interval, line density, and bounding box for each location, tuned to capture the character of that specific terrain. The pen plotter then translates the digital design into physical form, one line at a time, with real ink on real paper.
The result is a topographic map that functions as both a faithful representation of terrain and a piece of wall art. You can hang it in a living room and it reads as a minimalist print. Look closer and you’re reading the actual shape of a mountain you’ve climbed or a trail you’ve hiked.
Why Topographic Maps Make Compelling Art
Mountains, valleys, and coastlines have inherent visual structure. The contour lines of a steep peak compress into dense, rhythmic patterns. A glacial valley opens into wide, flowing curves. A volcanic cone produces near-perfect concentric circles.
These patterns emerge from geology and erosion, forces that operate on scales of millions of years, and they’re encoded directly in the contour lines. A topographic map of the Matterhorn looks nothing like one of Denali, which looks nothing like one of Mount Fuji. Each mountain’s contour signature is as distinctive as a fingerprint.
That’s what makes topographic map art compelling: every piece tells a specific story about a specific place, written in a visual language that’s both precise and beautiful.
